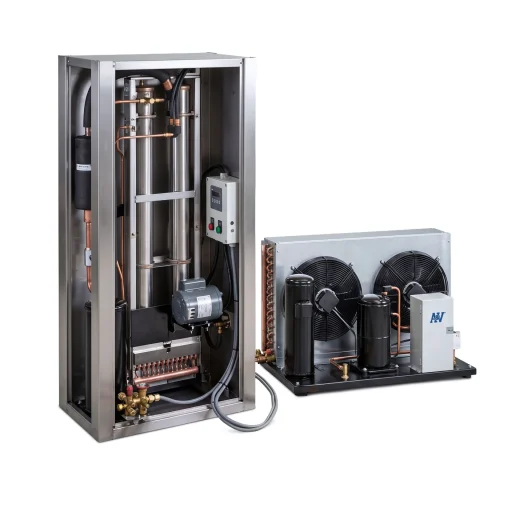

# AV020CR

- **Model Code:** AV020CR
- **Cooling / Condenser Type:** remote_air
- **Daily Production:** 1 Tons/24h (2000 Lbs/24h | 907 Kg/24h)
- **URL:** https://av-refrigeration.com/machines/ice-machine-av020cr/

## Overview & Description

A&V stainless steel (304) weather-resistant evaporator section. Heavy-duty galvanized condenser. Additional refrigeration work to be done by a qualified refrigeration technician, to hook up all the copper pipes condenser with the evaporator , vacuum work, refrigerant fill up, start up and tuning. Type of Ice: “Cracked Ice” to be used in all applications ( thickness can be adjusted as needed).

## Key Characteristics
Double surface freezing at the stainless steel (304) sanitary type evaporator cylinder tubes. Standard refrigeration parts and components accessible at any refrigeration store. All parts and components in contact with water are in accordance with the FDA regulations for food management. Simple routine maintenance needed We use only internationally recognized brands and heavy duty selected parts and components throughout the Ice Machine. A “Hot Gas Harvesting Process” combined with a flexible, durable and reliable proven technology, results in a higher energy efficient unit. Made for refrigerant R-404A (included) or R507 if requested (included).

## Model Specifications
ICE PRODUCTION UNDER IDEAL CONDITIONS **2,000 lbs (907 kg) / 24h “CRACKED ICE” THICKNESS Adjustable from 1/8″ to 5/8″ (3.175mm to 15.875 mm) ICE IS PRODUCED AT A TEMP OF: 5° Fahrenheit (-23° Celsius) EVAPORATOR DIMENSIONS Unit: L28″ x W19″ x H57″ (1.2m x0.5m x 1.4m) Pallet: L32″ W25″ x H57″ (1.4m x 0.6m x 1.4m) Net Weight: 220 Pounds (100kg) Shipping Weight: 320 Pounds (145kg) CONDENSER DIMENSIONS Unit: L48″ x W36″ x H25″ (1.2 x 0.9M x0.6m) Pallet: L54″ W40″ x H25″ (1.4m x 1m x 0.6m) Net Weight: 350 Pounds (159Kg) Shipping Weight: 450 Pounds (205Kg) MACHINE VOLTAGE (V/Ph/Hz): 208-230/1 or 3Ph/60 or 50 Hz 440-460/3/60 *** 380-400/3/50 *** 480/3/60 *** 600/3/60 *** *** Requires service for the controls at 208-230/1/60 o 190-200/1/60, respectively. TOTAL ELECTRIC CONSUMPTION 3.5 kWh CIRCUIT BREAKER @220V/3PHASE Evaporator: 20 Amp 3 Condenser: 20 Amp REFRIGERANT (Not Included) For R404-A or R507 (if requested) APPROXIMATE REFRIEGERANT CHARGE 18 Pounds (R404-A) CHUTE OPENING SIZE L4″ x W14″ ( 10.16cm x 35.56cm) One (1) opening needed ICE DISCHARGE Vertical DAILY WATER USAGE 260 gal (988L)/24h WATER PIPING INLET SIZE 3/8″ Compression fitting WATER DRAIN OUTLET SIZE 1/2″ MPT WATER OVERFLOW OUTLET SIZE 3/8″ Stainless Steel Tube COMPRESSOR SPECIFICATIONS Hermetic Compressor Power: 4H.P. Oil used: Synthetic Polyester RL32H or Similar (Included) “CRUSHED ICE” OPTION Not Available

## Commercial & Additional Details
- **Lead Time:** Lead time is four (4) to six (6) Weeks, after we receive the purchase order and the 50% deposit via wire transfer
- **Important Notes:**
- **Payment Conditions Enabled:** true
- **Warranty Included:** true
- **Is Accessory:** false
- **Brochure ID / File:** 233
