AV020C

2,000 lbs (907 kg) of cracked ice per 24 hours under ideal conditions. Built in Hialeah, Florida.

Get a model-specific quote

Heavy-duty industrial ice machinery engineered to your exact facility specs. Receive formal quotation, voltage options, and factory lead time.

Daily production

1 US tons / 24h

Metric capacity

907 kg / 24h

Construction

304 stainless steel

Refrigerant

Factory charged

Technical specifications

Specifications and installation requirements for the AV020C.

Rated output is measured at 90°F ambient air and 60°F inlet water. Actual production depends on operating conditions.

Custom designs may incur additional costs. Prices, dimensions and designs are subject to change.

ICE PRODUCTION UNDER IDEAL CONDITIONS **
2,000 lbs (907 kg) / 24h
CRACKED ICE THICKNESS
Adjustable from 1/8″ to 5/8″ (3.175mm to 15.875 mm)
ICE IS PRODUCED AT A TEMP OF
5° Fahrenheit (-23° Celsius)
DIMENSIONS (ONE PIECE)
Unit: L71″ x W29″ x H60″ (L1.8m x 0.7m x 1.5m)
Pallet: L77″ W35″ x H65″ (1.9m x 0.9m x 1.6m)
Net Weight: 600 Pounds (273Kg)
Shipping Weight: 750 Pounds (341Kg)
MACHINE VOLTAGE (V/Ph/Hz)
208-230/1 o 3/60 o 50 Hz
440-460/3/60 ***
380-400/3/50 ***
480/3/60 ***
600/3/60 ***
*** Requires service for the controls at 208-230/1/60 o 190-200/1/60, respectively.
ELECTRIC CONSUMPTION
3.5 kWh
CIRCUIT BREAKER @220V/3PHASE
30 Amp
REFRIGERANT (Included)
R404-A or R507 (if requested)
APPROXIMATE REFRIGERANT CHARGE
18 Pounds (R404-A)
CHUTE OPENING SIZE
L4″ x W14″ ( 10.16cm x 35.56cm)
One (1) opening needed
ICE DISCHARGE
Vertical
DAILY WATER USAGE
260 gal (988L)/24h
WATER PIPING INLET SIZE
3/8″ Compression fitting
WATER DRAIN OUTLET SIZE
1/2″ MPT
WATER OVERFLOW OUTLET SIZE
3/8″ Stainless Steel Tube
COMPRESSOR SPECIFICATIONS
Hermetic Compressor
Power: 4H.P.
Oil Used: Synthetic Polyester
RL32H or Similar (Included)
CRUSHED ICE OPTION
Not Available

Construction & service

Explore this model’s construction, components and operating features.

Operating features

  • Double surface freezing at the stainless steel (304) sanitary type evaporator cylinder tubes.
  • Standard refrigeration parts and components accessible at any refrigeration store.
  • All parts and components in contact with water are in accordance with the FDA regulations for food management.
  • Simple routine maintenance needed
  • We use only internationally recognized brands and heavy duty selected parts and components throughout the Ice Machine.
  • A “Hot Gas Harvesting Process” combined with a flexible, durable and reliable proven technology, results in a higher energy efficient unit.
  • Made for refrigerant R-404A (included) or R507 if requested (included).

System details

  • A&V stainless steel (304) weather-resistant evaporator section.
  • Heavy-duty galvanized condenser.
  • No additional refrigeration work needed ( only to be connected to the water source and the power supply)
  • Type of Ice : “Cracked Ice” to be used in all applications ( thickness can be adjusted as needed).

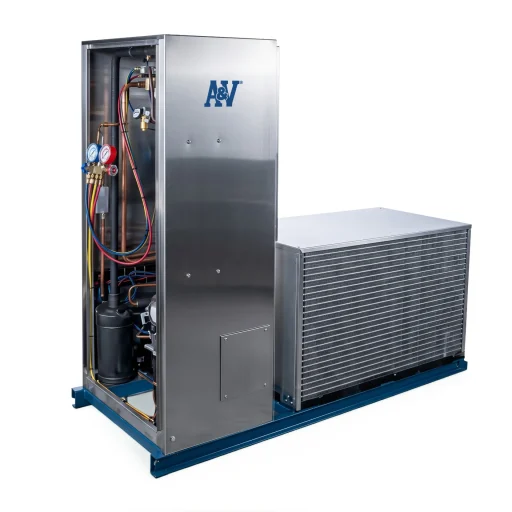

A&V refrigeration assembly and stainless steel evaporator section

A&V refrigeration assembly

Thin pieces of cracked ice

Industrial cracked ice

Fish and seafood displayed with ice

Ice for seafood handling

Choose your configuration

Compare self-contained C units with remote CR configurations, including installation and start-up requirements.
Installation topicSelf-contained CRemote CR
InstallationThe evaporator and condensing unit share one steel base.The evaporator and condensing unit are separate, each on its own steel base or skid.
Piping and filtrationRefrigeration piping and suction and liquid-line filters are installed at the factory.A qualified commercial refrigeration technician must connect the copper piping and install the liquid-line filter. The compressor suction filter is already installed. Confirm permitted pipe length and routing for your installation.
Refrigerant and commissioningThe unit is evacuated, charged, leak-tested and calibrated at the factory. Refrigerant is secured for shipping. Check for leaks after transport and installation, then connect the specified water and electrical supplies before startup.A qualified commercial refrigeration technician must leak-test and evacuate the system, charge the refrigerant, adjust the expansion valves and controls, and perform startup after the water and electrical supplies are connected.
Ventilation and placementThe condensing unit needs an open, well-ventilated location so air can circulate through the fans. An enclosed space can restrict ventilation and affect operation. Confirm the model’s installation and weather-exposure requirements.The evaporator can be placed indoors or outdoors. The condensing unit must be outdoors with adequate ventilation. Confirm the model’s placement requirements.
Electrical supplyOne main power supply and one main disconnect are required.The evaporator and condensing unit each need their own power supply and disconnect.
Final installationReinstall the ice-bin level control in the bin, with the thermocouple at least 6 inches below the required ice level, following the model’s installation instructions.Insulate exposed hot-gas lines. If the condenser is above the evaporator, a qualified installer must assess suction-line traps and applicable requirements. Reinstall the ice-bin level control as specified in the model’s installation instructions.

Plan your installation

Tell us about your facility. Our team can help with machine sizing, voltage options and a formal engineering quote.

Get a model-specific quote

Heavy-duty industrial ice machinery engineered to your exact facility specs. Receive formal quotation, voltage options, and factory lead time.

1 Year Limited A&V Factory Warranty
Direct Engineering & Sizing Support
Worldwide Export & Integration Ready

Limited warranty

One-year limited A&V warranty on parts, components and the compressor, including exported units. Labor, refrigerant and shipping are excluded.

Quotation & payment

Your quotation confirms pricing in U.S. dollars, payment terms and the selected configuration. Prices are ex-works Hialeah, Florida.

Factory lead time

Allow 6–8 weeks after receipt of the purchase order and 50% deposit by wire transfer. Confirm the current schedule in your quotation.
